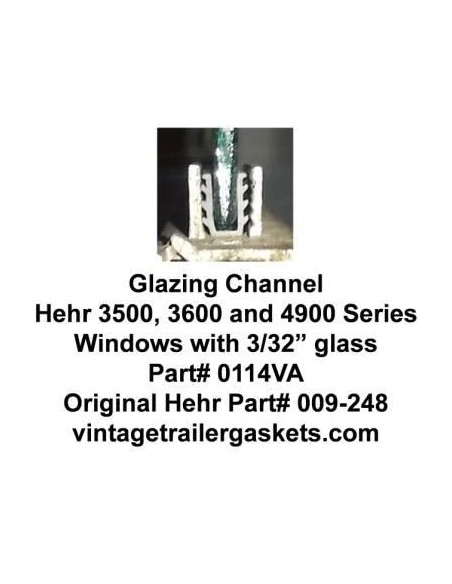

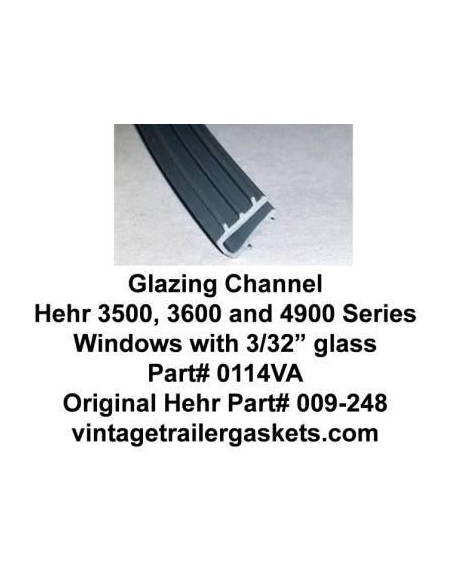

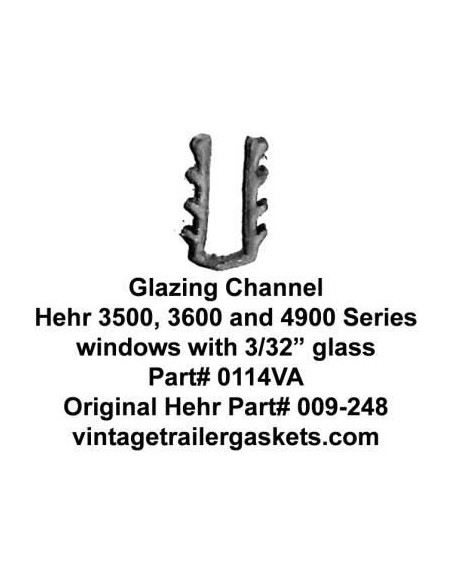

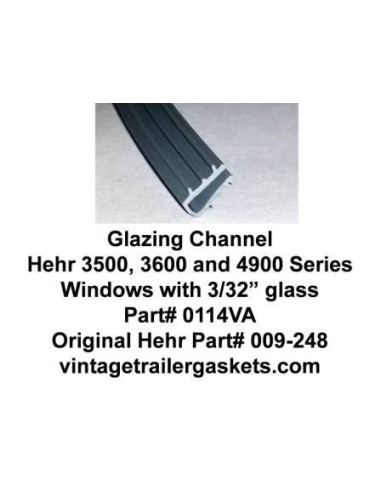

Hehr 3500 3501 3600 3601 Glazing Channel for 3/32 Inch Glass

This glazing was used on Hehr Series 3500 (3501), 3600 (3601) and 4900 (4901) louvered windows. Color: Grey

Please see note below regarding glass thickness.

vintagetrailershop Part# 0114VA

Original Hehr Part# 009-248

More details

0114VA

$0.55

$0.55 per ft

1. The Hehr Series 3500, 3600 and 4900 windows require 3/32" thick glass when using this glazing product. 1/8" glass will not work with this glazing channel. If your glass shop does not have 3/32" glass, you can purchase 36" x 24" glass sheets at Home Depot or Lowes and deliver to your glass shop for cutting.

2. When cutting glass for use with this glazing product, the glass pane should overlay the aluminum glazing channel by 1/4".

3. The thickness of the rubber glazing channel has been designed to fit snugly between the 3/32" glass pane and the aluminum channel. Off-the-shelf glazing channel from a hardware store or glass shop will be too thick to fit between the glass pane and the aluminum channel.

4. When installing glass and glazing into the aluminum window channel, make sure the aluminum channel is clean and smooth. If there is corrosion inside the channel, use a small wire brush to smoothen.

5. Use liberal amounts of lubricant such as Dawn liquid dish soap.

Here are a few of the vintage
trailers, campers, and RV's
that used Hehr or Woodlin
windows:

Airstream        Lighthouse
Airfloat              Little Caesar
Aljoa                  Love Bug
Aloha                 Mercury
Aristocrat        Metzendorf
Avion                 Rainbow
Bolers               Road Runner
B
oles Aero       Rod and Reel
Caravelle          Safari
Comet               Scamp
Crown               Serro Scotty
C
urtis Wright  Shasta
Dalton               Silver Streak
Elite                   Spartan
EZ Camper      Streamline
Fan                    Sundial
Fireball             Terry
Forester           Traveleer
Hanson             Traveleze
Holiday              Trilium
Kenskill             VW Camper Bus
Kit                       Westerner
