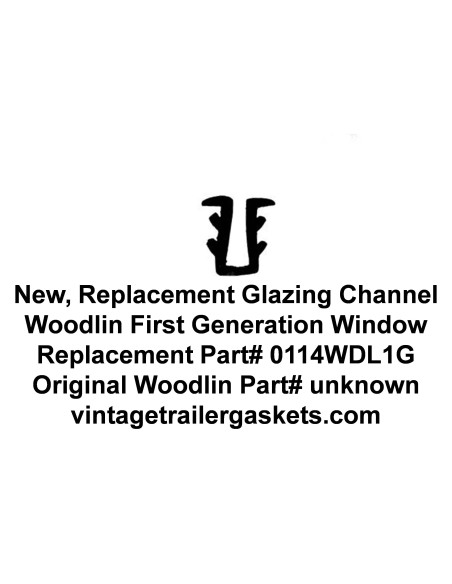

Woodlin Glazing Seal for First Generation Vintage Woodlin Windows

Notes:

1. The glazing seal is designed for 1/8" glass. When replacing your window glass for a Woodlin window make sure you use 1/8" glass.

2. When sizing the glass for a new glass pane, the glass pane must overlay the aluminum frame by exactly 1/8"; if more them 1/8", you may not be able to insert the glass into the frame without bending the frame or breaking the glass.

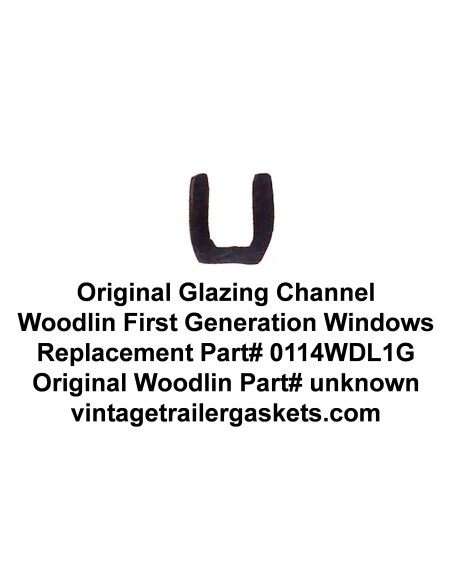

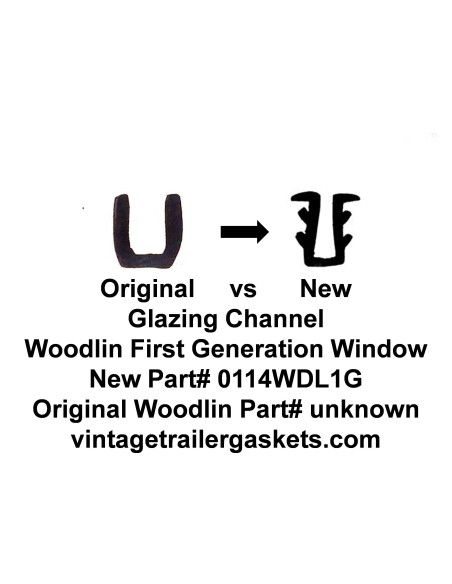

3. Generation 1 Woodlin windows were produced from the mid 1940's to the mid 1950's.  A defining feature of the generation 1 windows was the "U" channel aluminum frame used to hold the glass in place. Generation 2 windows were produced from 1954 thru 1959. The Generation 2 window did not utilize a "U" channel for holding the glass in place.
