*Woodlin Seal for Second Generation Vintage Woodlin Windows


Woodlin Seal for Second Generation Vintage Woodlin Windows

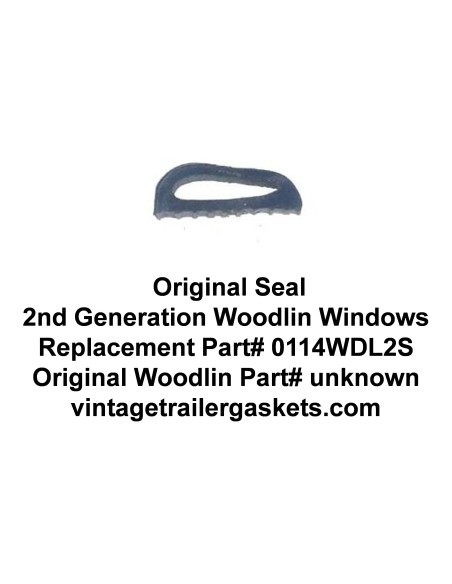

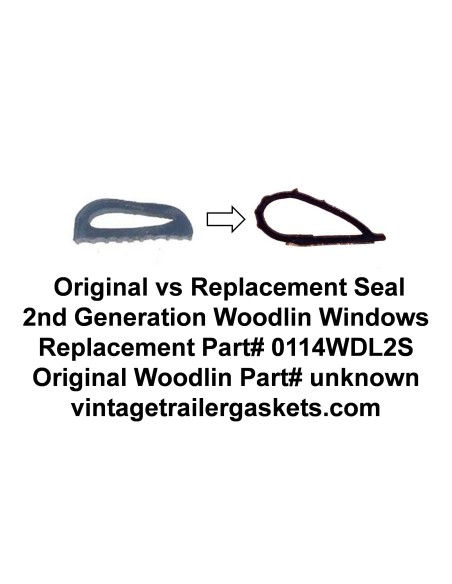

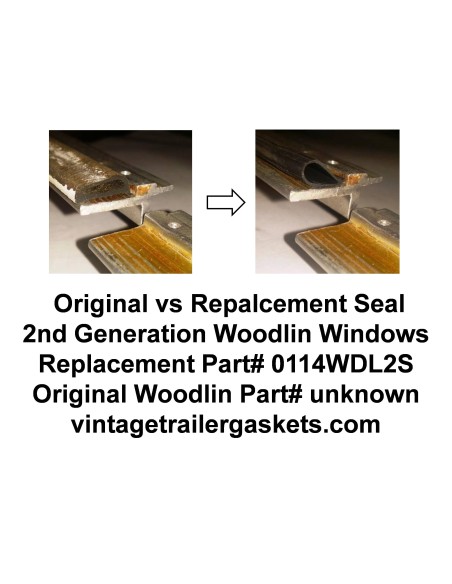

This gasket was used on all Second Generation Woodlin windows to provide a seal between the movable and fixed sections of the window. Our replacement gasket, 0114WDL2S, was developed and tested to ensure a water and air tight seal. Please read the installation notes below.

Color: black

replacement Part#: 0114WDL2S

More details



$1.25 per foot

Note 1: The gasket includes a self-adhesive backing. Provide a clean surface before applying gasket to window surface.

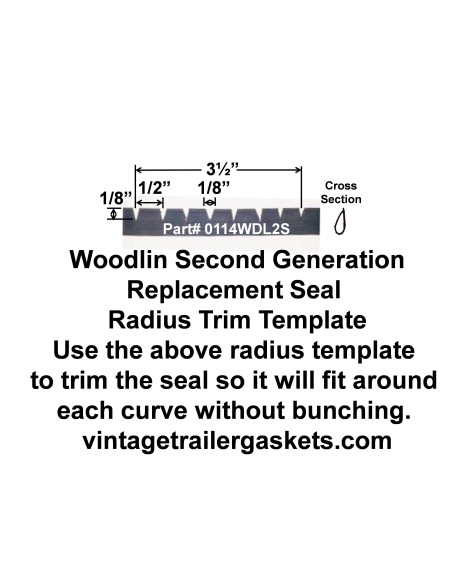

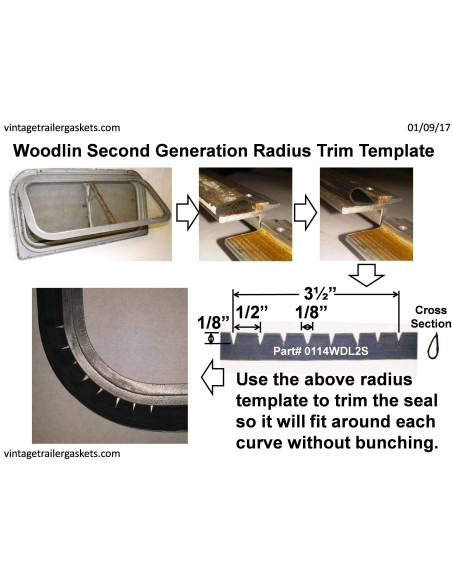

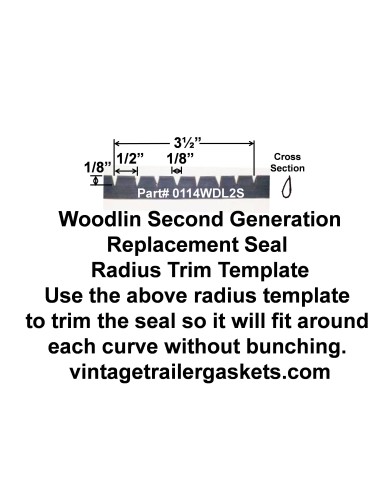

Note 2: Use the "curve trim template" shown in the photos above to prevent the gasket from "bunching up" around the curved corners of the window.

Occasionally the release paper on the Two-Sided Tape can be difficult to peel off. When this happens the tape itself might peel away from the santoprene bulb. To overcome this problem, pinch the end of the bulb seal, rolling the bulb between your thumb and index finger. This helps break the seal on the end between the paper and tape. Carefully start to peel off the paper and check to see that the tape is not coming off at the same time.

Here are a few of the vintage
trailers, campers, and RV's
that used Hehr or Woodlin

Airstream        Lighthouse
Airfloat              Little Caesar
Aljoa                  Love Bug
Aloha                 Mercury
Aristocrat        Metzendorf
Avion                 Rainbow
Bolers               Road Runner
oles Aero       Rod and Reel
Caravelle          Safari
Comet               Scamp
Crown               Serro Scotty
urtis Wright  Shasta
Dalton               Silver Streak
Elite                   Spartan
EZ Camper      Streamline
Fan                    Sundial
Fireball             Terry
Forester           Traveleer
Hanson             Traveleze
Holiday              Trilium
Kenskill             VW Camper Bus
Kit                       Westerner
