*Woodlin Glazing Seal for Vintage Woodlin Stationary Windows

Search



Woodlin Glazing Seal for Vintage Woodlin Stationary Windows

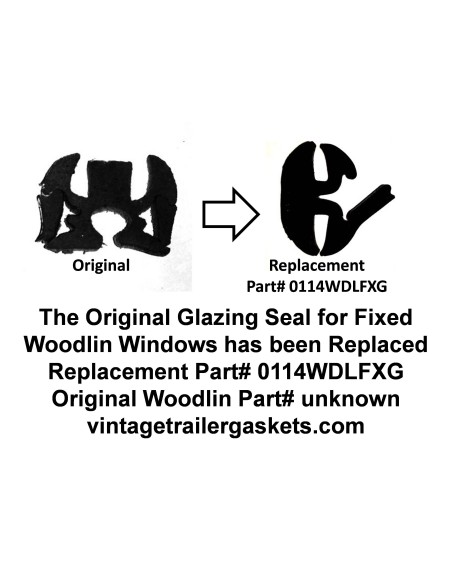

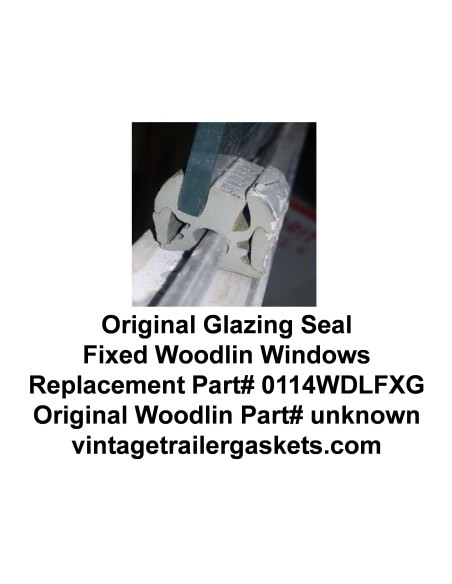

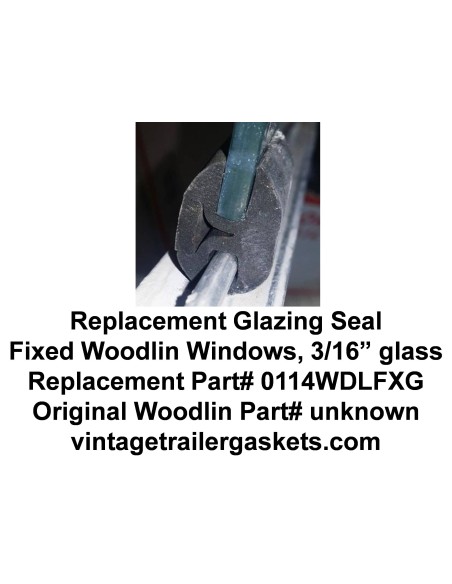

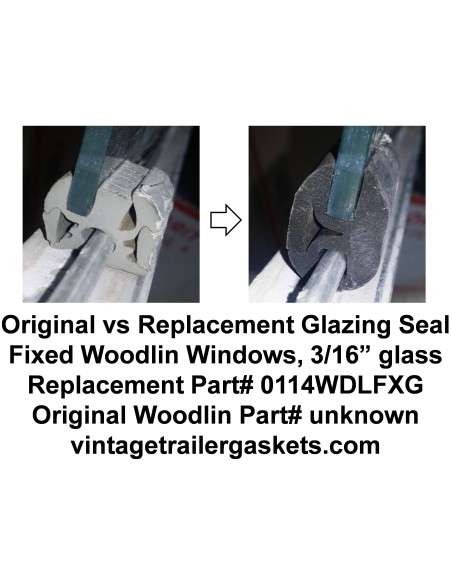

Woodlin used locking gaskets to hold the glass in place on their vintage stationary windows. The original glazing had 2 slots, one was for 1/8" glass and the other was for 3/16" glass. Our replacement locking gasket is designed for 3/16" glass only.

Color: black

Part# 0114WDLFXG

More details

0114WDLFXG

$3.59

$3.59 per foot

Note 1: The 2 typical window sizes were 22 inch and 31 inch. Both windows were square. The  22 inch window requires 8 feet of gasket. The 31 inch window requires 11 feet of gasket.

Note 2: The locking gasket requires 3/16" thick glass.

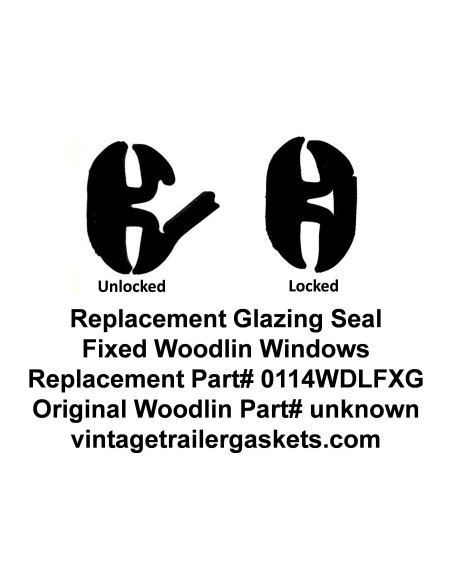

Note 3: A gasket locking tool may be required to lock the gasket in place. Part# 0114LT

Note 4: These windows were extensively used on Vagabond trailers.

Note 5: Both tracks on the original glazing were used in some cases to provide dual pane windows. This gasket does not allow for dual pane windows.

Note 6: For instructions on how to install a one piece locking gasket, select the download tab above and download "Locking Gasket Install Guide".

Here are a few of the vintage
trailers, campers, and RV's
that used Hehr or Woodlin
windows:

Airstream        Lighthouse
Airfloat              Little Caesar
Aljoa                  Love Bug
Aloha                 Mercury
Aristocrat        Metzendorf
Avion                 Rainbow
Bolers               Road Runner
B
oles Aero       Rod and Reel
Caravelle          Safari
Comet               Scamp
Crown               Serro Scotty
C
urtis Wright  Shasta
Dalton               Silver Streak
Elite                   Spartan
EZ Camper      Streamline
Fan                    Sundial
Fireball             Terry
Forester           Traveleer
Hanson             Traveleze
Holiday              Trilium
Kenskill             VW Camper Bus
Kit                       Westerner
